Brand Name : Shinho
Model Number : SC24
Certification : CE, FCC, ROHS
Place of Origin : Shenzhen, China
MOQ : 1 piece
Price : Negotiable
Payment Terms : TT, Paypal, Western Union
CPU : I3-6100U
Memory : 8G DDR3
Hard Drive Capacity : 256G SSD
Panel size : 24"
Resolution : 1920*1080
Aspect ratio : 16:9
Brightness (cd/m²) : 1000 nits
Material : stainless steel
1000 Nits 24 inch Stainless Steel IP65 Waterproof Touch Industrial Panel PC
Features
1. IP65 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof.
6. 1000 nits, manual brightness. With 2 buttons: 1 button to turn up the light and another button to turn down the light.
7. Built in Wifi and Bluetooth which hidden inside.
Specification
Model:SC24 | |
PC | |
CPU | Intel® Core, I3-6100U, 2.30 GHz, dual core, fanless |
Memory | 8G DDR3 (2G, 4G optional) |
Hard Drive Capacity | 256G SSD |
Hard Drive Optional | SSD: 32G, 64G, 128GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI |
Bluetooth 4.0 | |
I/O Interface | 3x USB, 1 x Lan, 1 x POWER DC |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
LCD panel | |
Panel size | 24" |
Resolution | 1920*1080 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits, sunlight readable |
Brightness control | Membrane switch |
Response time | 5ms |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 point capacitive touch |
Touch Interface | USB (RS232 optional) |
Touch response time | <8ms |
Luminousness | 90% |
Surface Hardness | 3H |
Working Life | >50 million times |
Touch options | (Resistive touch, IR touch optional) |
Power Supply | |
External Power Supply | AC 100-240V |
Working voltage | DC 12V |
Power consumption | ≤45W |
Enclosure | |
Material | stainless steel |
Color | Silver |
VESA mounting | 100x100mm |
IP grade | Full IP65 waterproof |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 14kg |
Gross weight | 22kg |
Product Dimension | 58.89x35.61x5.8cm |
Packing size | 73x54x23cm |
Accessories | Power adapter, IP65 waterproof USB cable/Lan cable, power cord. |
Other | |
Mounting (options) | embedded mounting screws |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificate | CE, FCC, RoHS |
Pictures
Drawing
Application
Shopping Mall
Super Market
Smart home
metro station
compang
hospital
Airport
Restaurant
Automobile 4S stores
Packaging testing equipment

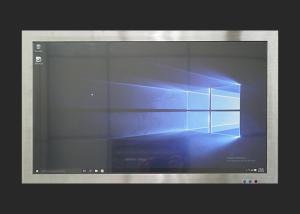

1000 Nits 24 Inch Stainless Steel Panel PC IP65 256G SSD Hard Drive Capacity Images |
